CHeKT Cloud AI

CHeKT Cloud AI

CHeKT Cloud AI

Enable CHeKT Dealer Portal AI Service

A: Go to Dealer Settings
B: Go to AI Filtering
C: Select "Get Started"



Review and Acknowledge the CHeKT AI Dealer Agreement



Define your dealer default settings for AI Filtering

A. Default Provider
      1. Calipsa
      2. Actuate
B. Object Detection
C. Signal Notifications

Notes
These settings will be applied to sites as you enable AI on each site. These settings can be customized by site and by camera.

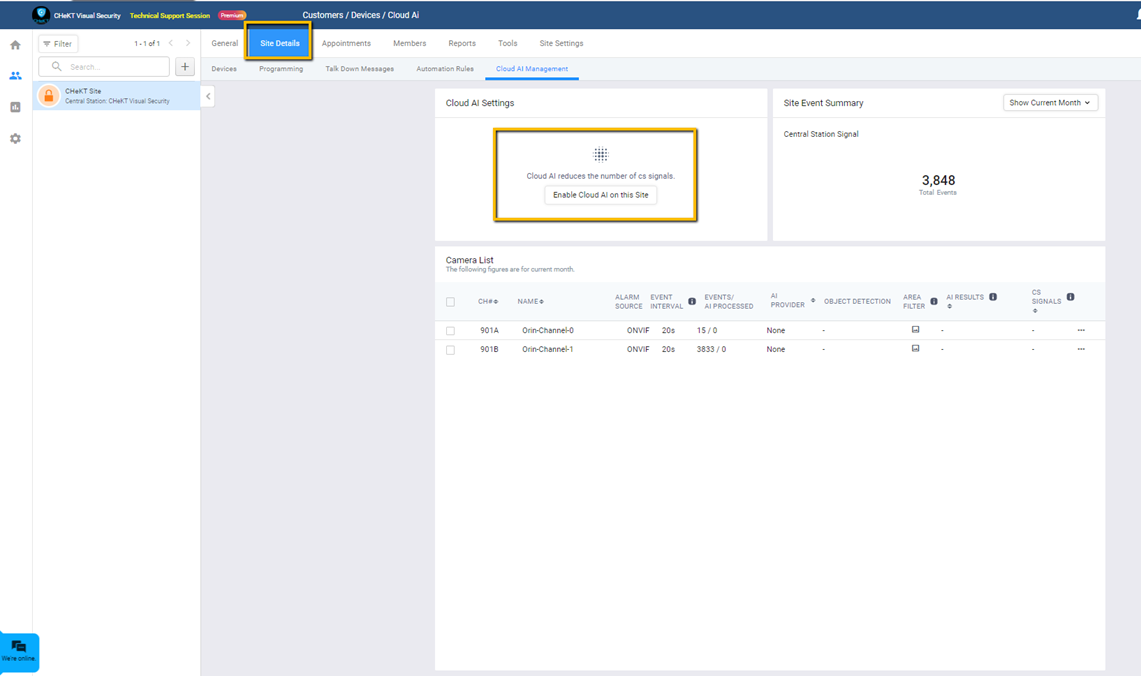

Enable AI Filtering on a site.

A. Go to the site.
B. Go to Site Devices.
C. Go to "Cloud AI Management"
D. Select Enable Cloud AI on this Site and Confirm.


Customize CHeKT AI Filtering

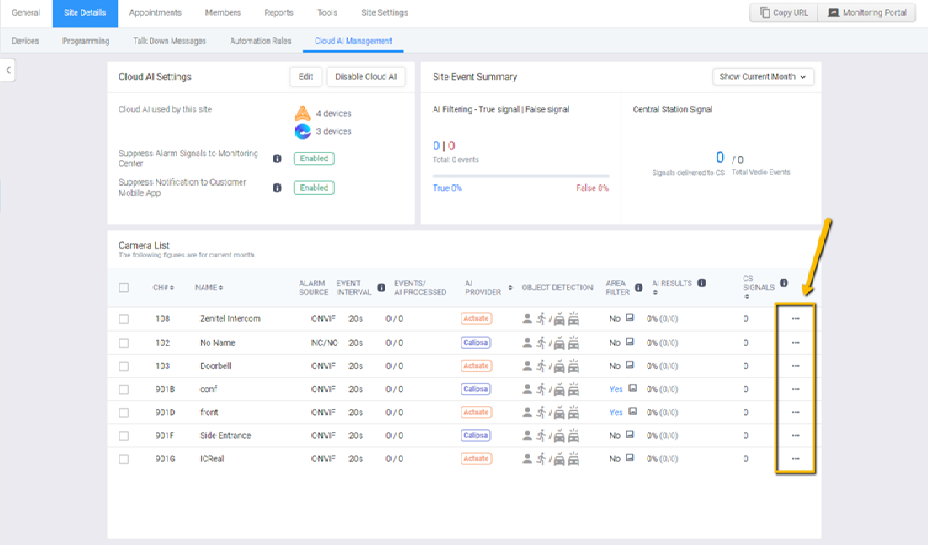

To modify any individual camera settings, use the {...} menu.
Custom Options
1. Change Provider
2. Object Detection Rules
3. Change Alarm Signal Rules
4. Define Alarm Interval
5. Define Detection Area


Reviewing Results of AI Filtering on a site.


Notes
As a standard, it is normal operation to suppress the alarm signal and notification to the customer mobile app when AI filtering returns a "Nothing Detected" result.
When the desired Object Classification is detected, then the alarm signal and notification is sent.

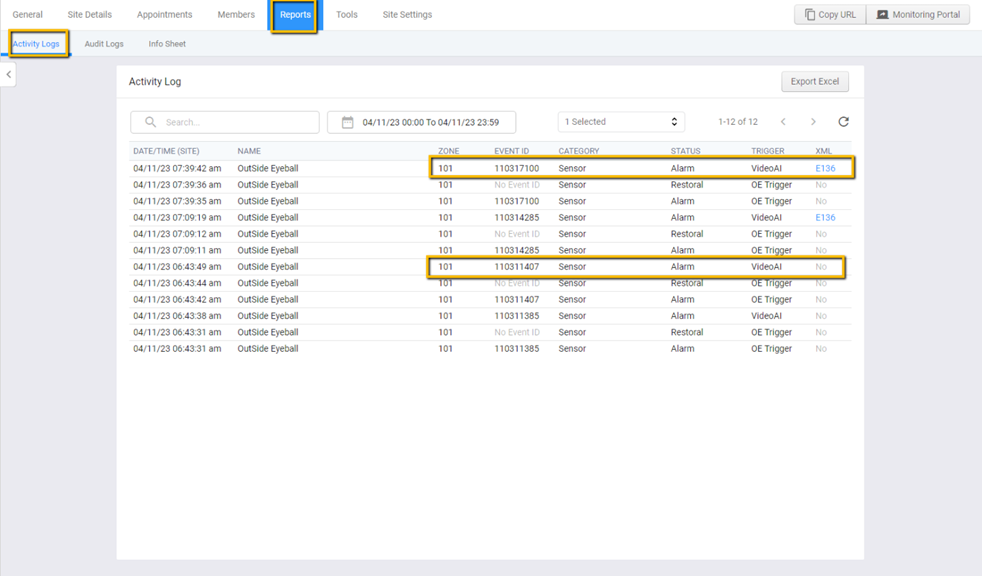

To review results
1. Go to Site Reports
2. Activity Log

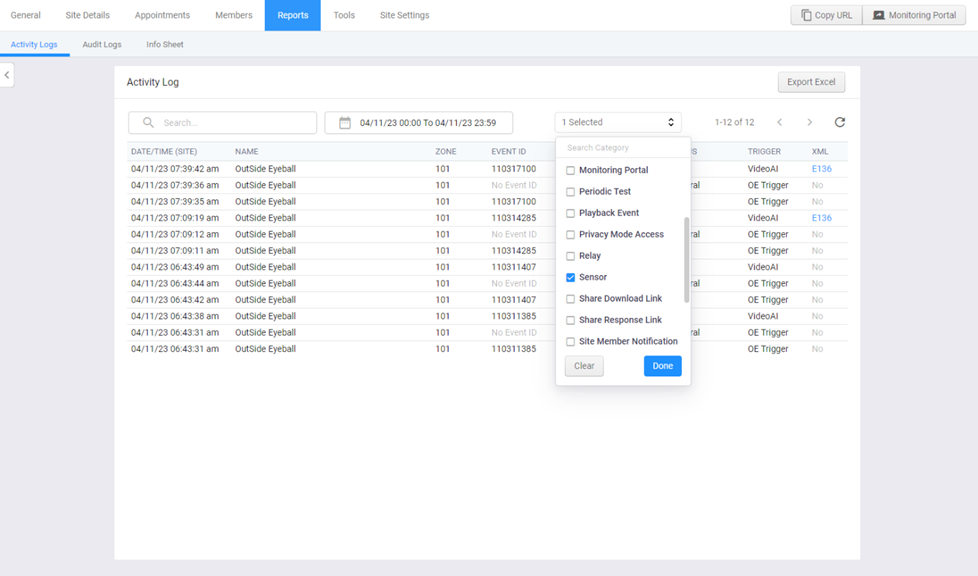

3. Select "Sensor" from your Category filter.


When camera has AI enabled.
And  an alarm trigger occurs.
You may see three associated logs
      1. Alarm Trigger
      2. Restoral
      3. VideoAI
When AI results are True, you see the associated "Alarm Signal"
When AI results are False, you will see the alarm signal is missing.



By selecting the individual line, you can review the detailed results
In the description section you will see:
      Results of the Provider



Idea
Results can also be viewed on: https://arc.chekt.com/
