CKB312: 12-Channel Video Bridge Information
The CKB312, the 12-Channel Video Bridge.
- Supports 12 Mounted Camera Streams, with accompanying Blue status LEDS for each mounted channel.
- Arming Configuration: End-User Mobile App or a Programmable (0-12 VDC) voltage input.

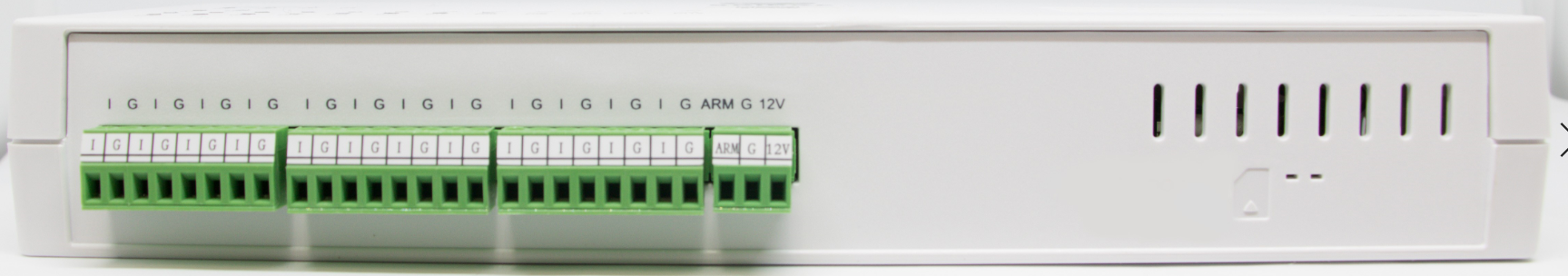

- Each stream still has the independent hardware input location just like the 4 Channel CKB304 you are familiar with

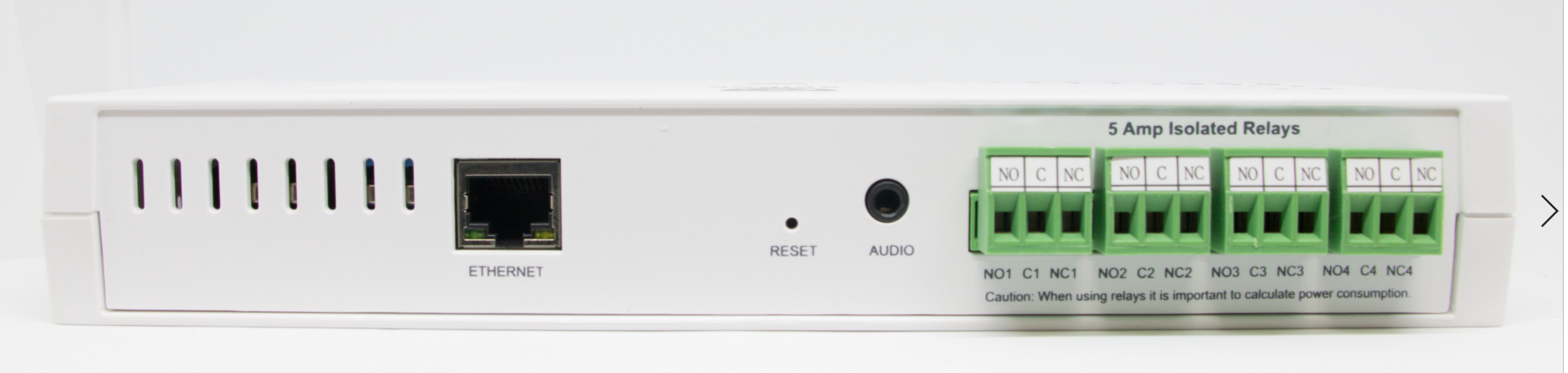

- Includes 4 Isolated Relays, independently configurable in the Portal for automatic or manual activation
- 3.5 mm Audio Output for Talk Down

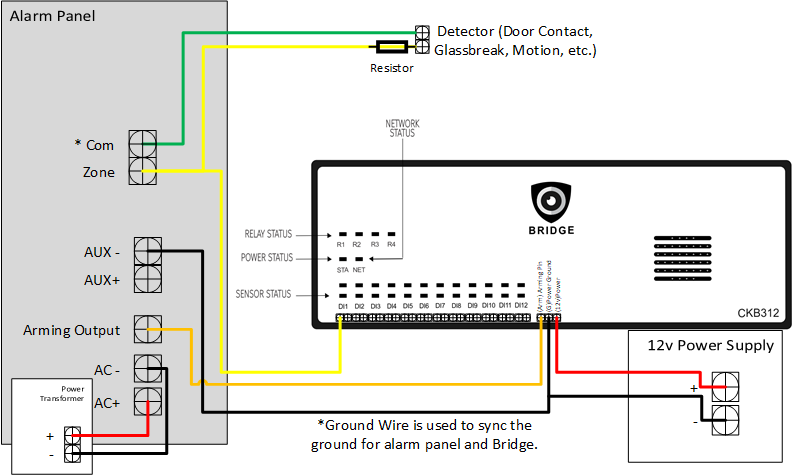

- Alarm Panel Wiring:
