DI Real Time Status Indicator

DI Real Time Status Indicator

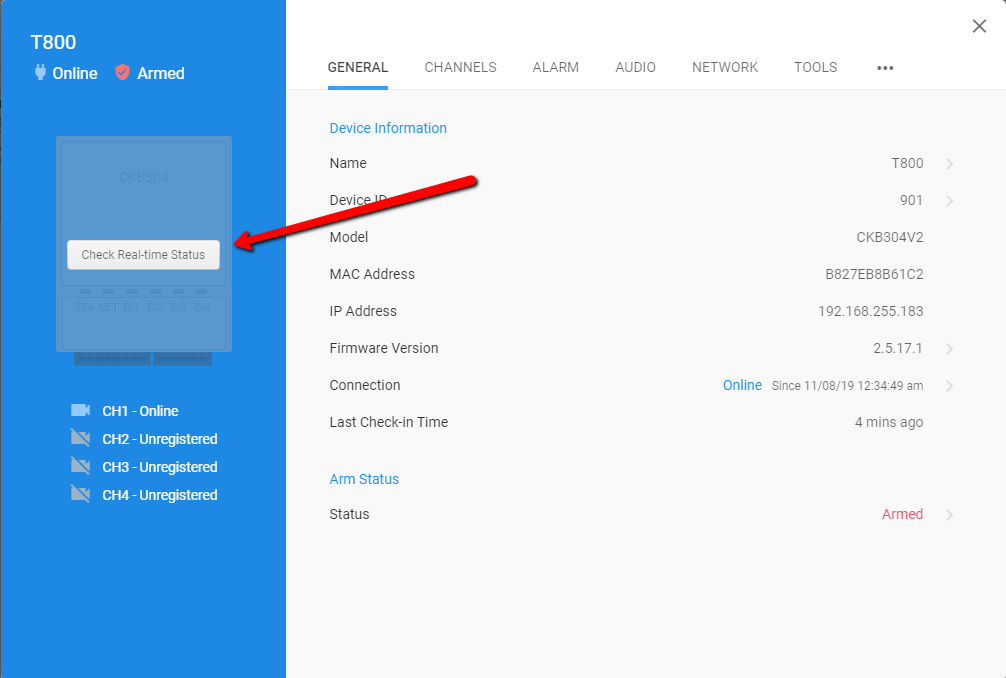

Users can now view the real time status of the Digital inputs and their associated LED's on their connected CKB304. To access this function, open bridge settings and click on "Check Real-Time Status" button.

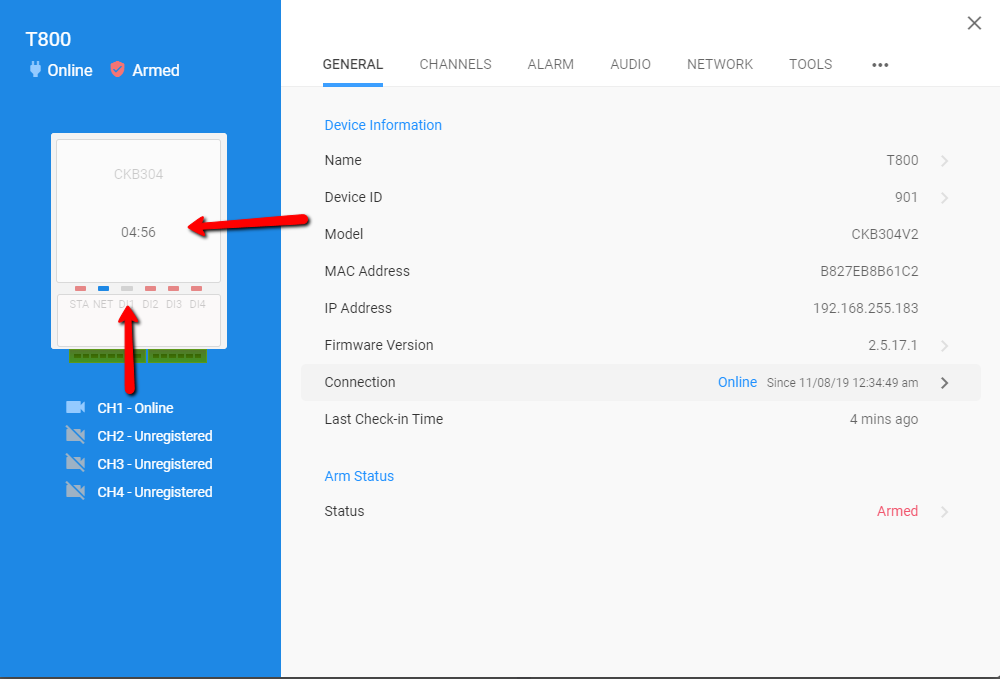

The button will enable the viewing of the real time status for 5 minutes; you will notice both the LED indicators illuminate and the 5 minute access clock appear:



I only have the single input wired on channel 1; we can see the input has a "normal" condition as the light is out.


*Note for Version 2 Hardware* The Status LED's will reverse in software to follow the programmed input type. Red is "alarm" and off is normal.

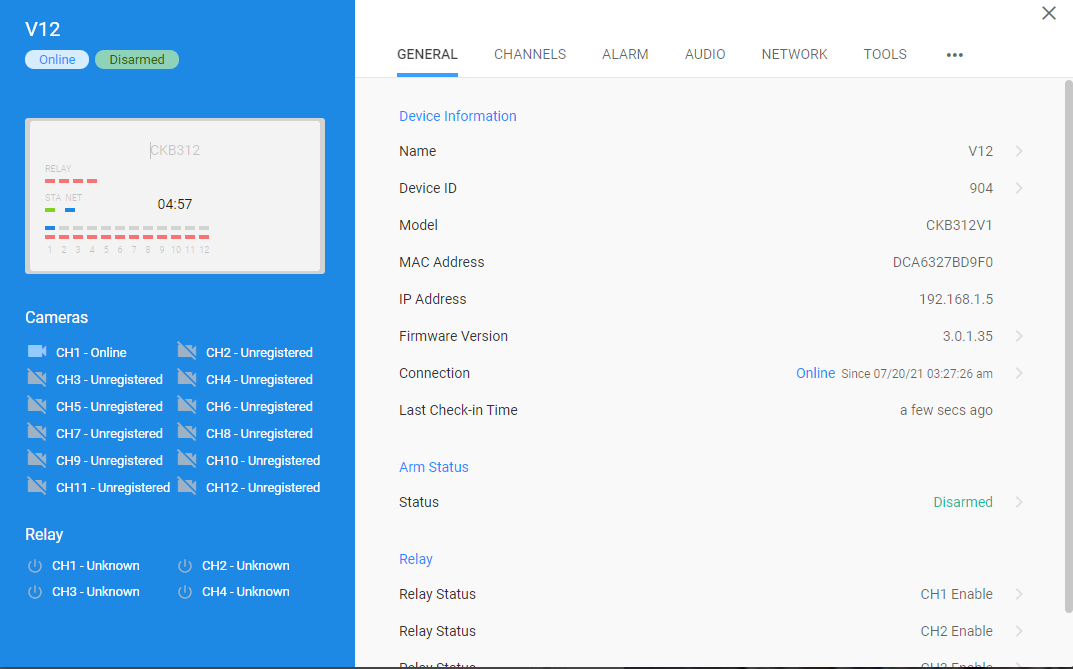

The CKB312 Bridge has a wider view to depict the whole unit, but operates in the same fashion as depicted above, but with an additional blue light line for the 12 Mounted Cameras
