CHeKT Bridge Local Web Interface (Admin Tool)

CHeKT Bridge Local Web Interface (Admin Tool)

  1. The CHeKT Bridge can be accessed via the web browser from a device on the same Local Area Connection. This is not normally required for basic set up, but offers another method to interface with the unit and can allow for configuration when the device is no longer connected in the dealer portal.

Accessing the Web Page

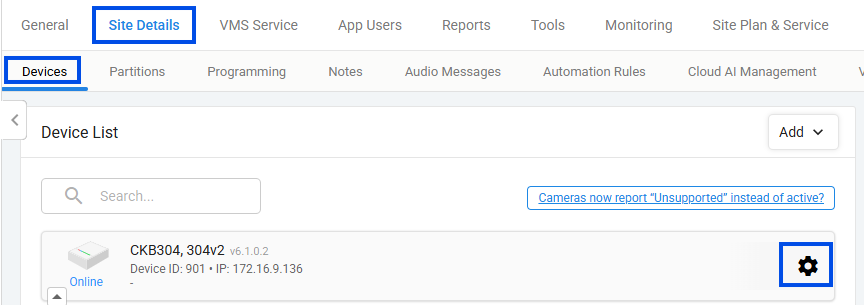

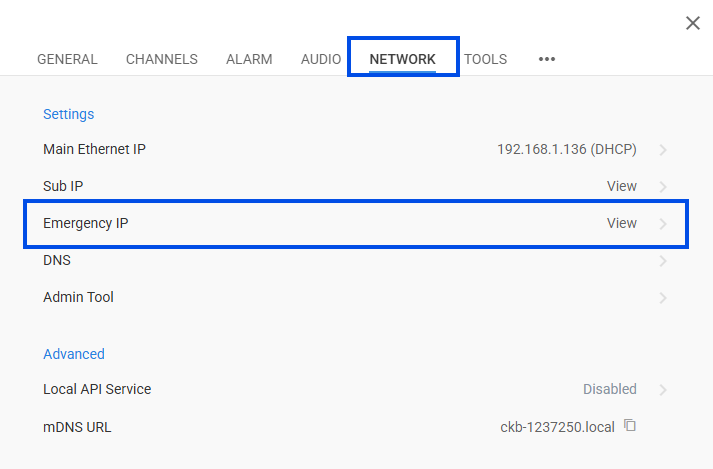

Open the Network Tab of your Bridge




Click the "Admin Tool" Slider

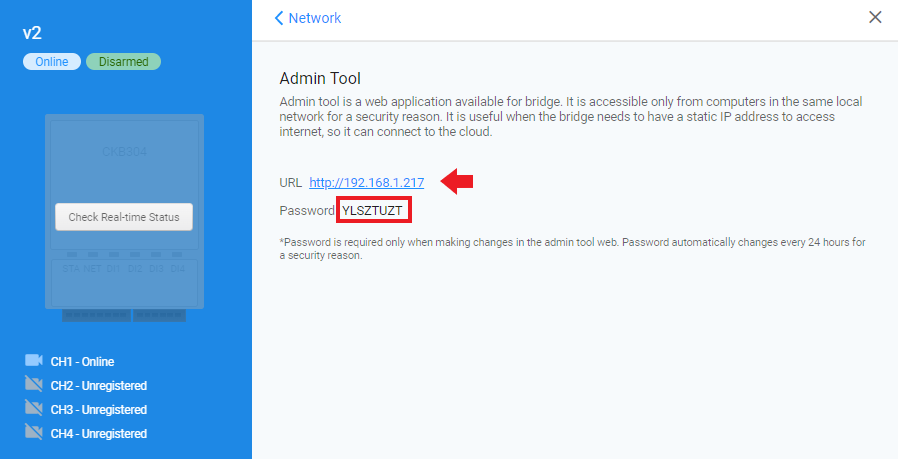

On this page, you will see a clickable link to the Bridge Local IP, as well as the Daily Admin Password updated in the portal:



Click The URL or enter the depicted Local IP into the web browser, and have the daily password on your clipboard.


  1. If the Bridge has never been registered online in the portal (and thus hasn't received the daily Portal Password) the Password is the Entry Key of the unit.
  2. The most recent password assigned to the unit should be displayed in this admin tool page, even if the device is offline.
  3. In the event the Bridge is offline , the Emergency IP will go active. Also depicted in https://support.chekt.com/portal/en/kb/articles/bridge-network-tab#3_Emergency_IP, the bridge webpage will become accessible at this Unique IP when the Bridge can no longer communicate with the cloud. Each Bridge has a unique Emergency IP.

Navigating the Web Page

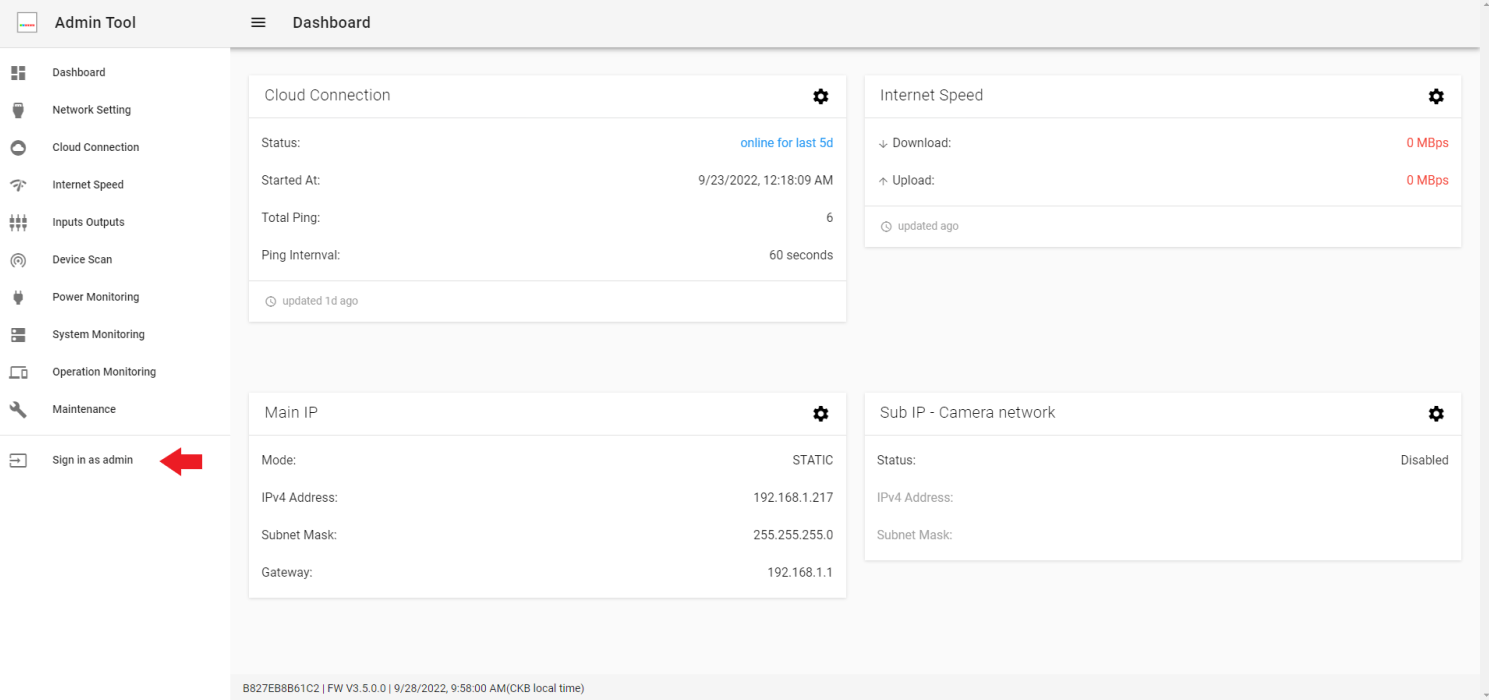

Start by clicking the sign in as admin option from the front menu:

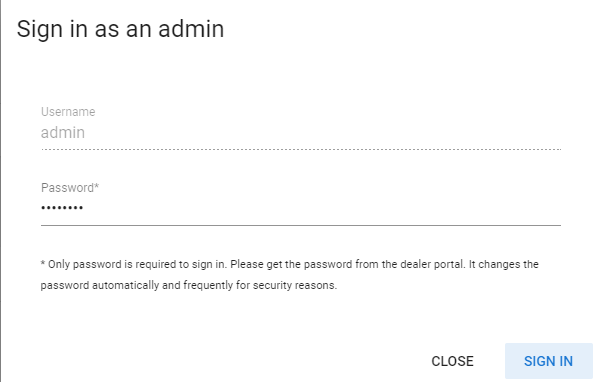

Enter the Daily Password in the provided box and click Sign In



Upon a successful sign in, the theme will change from light to dark, and the bottom option will depict "Sign out"

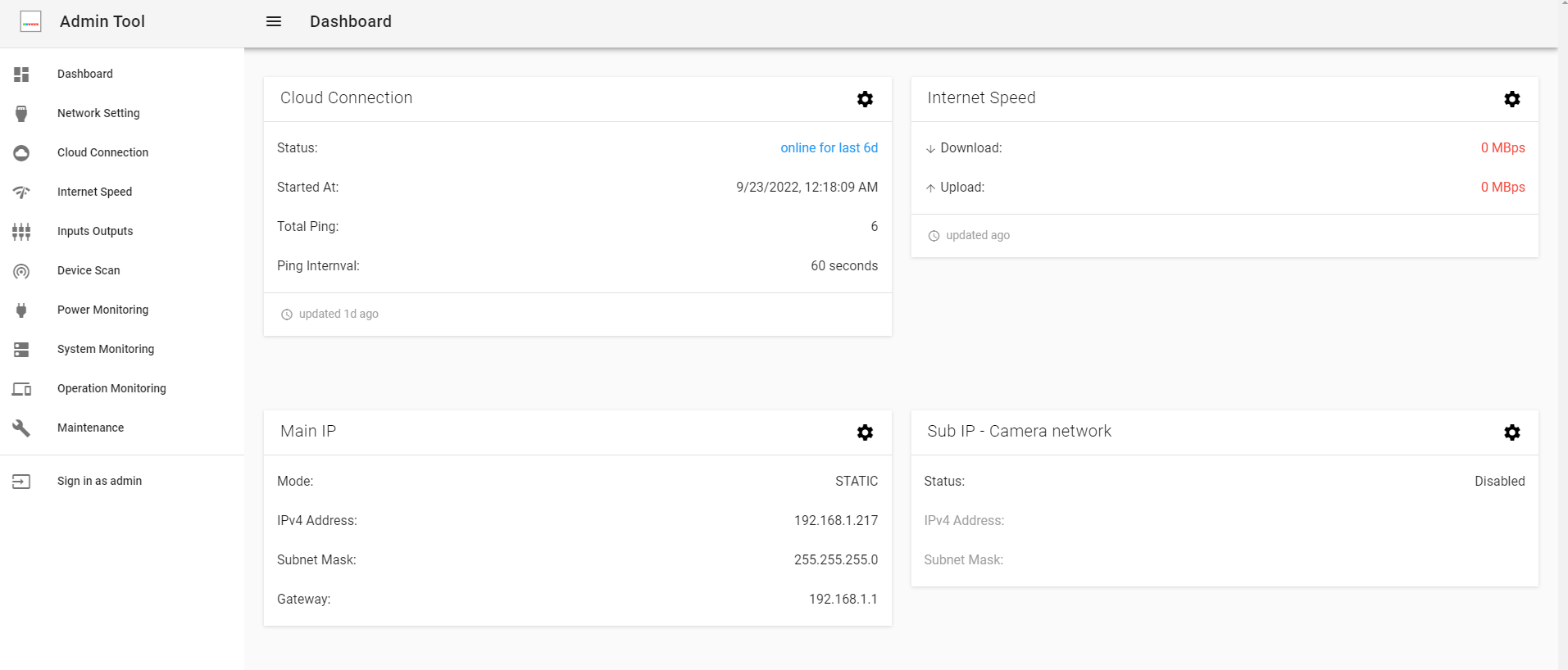

The Dashboard Shows uptime information for the bridge, as well as the most recent speed test and current IP information.

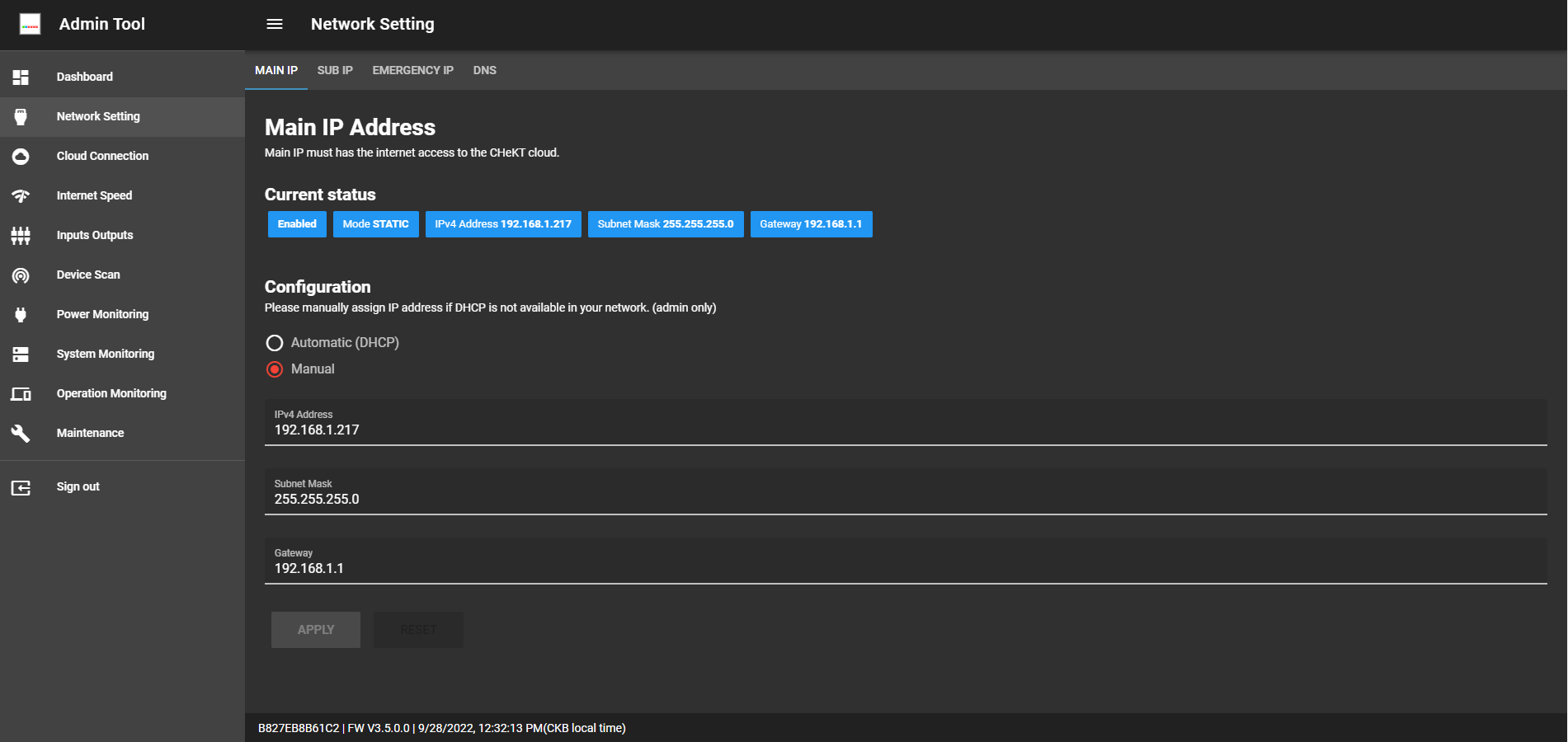

In Network Settings, you can edit the current Bridge Network Configuration.

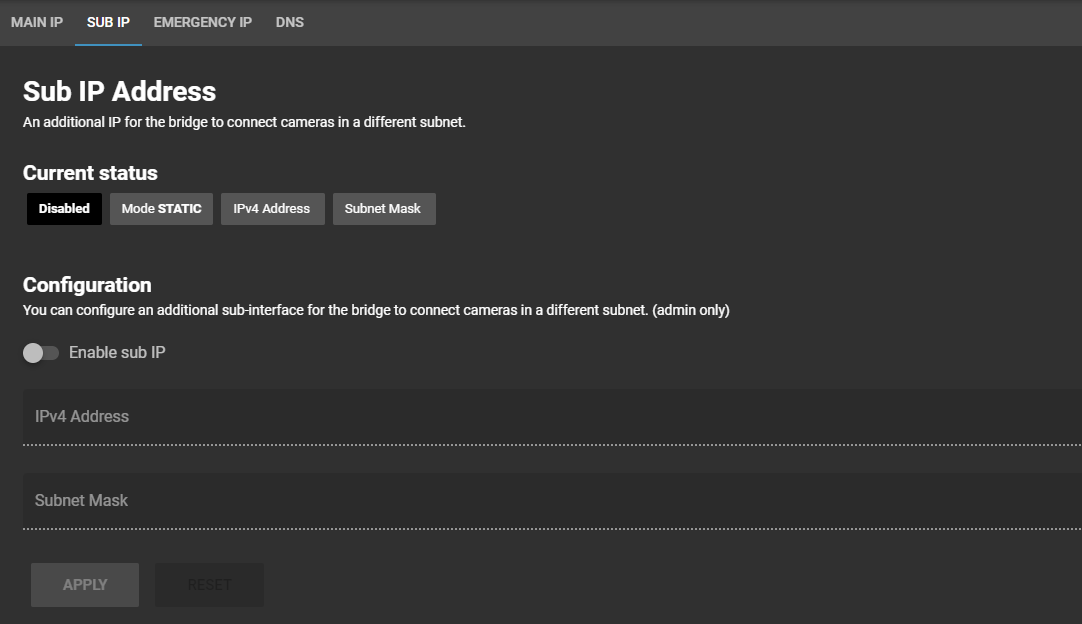

View/Edit  the Sub IP :

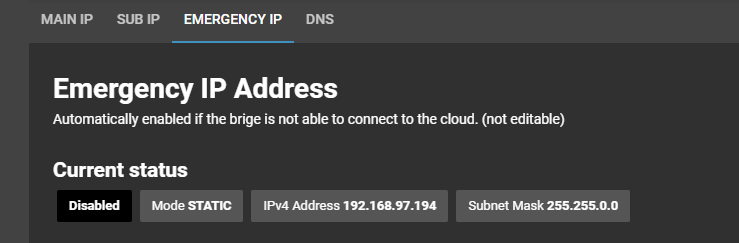

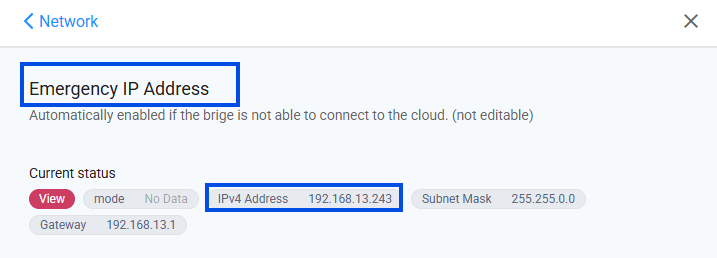

 View the Unique Emergency IP:

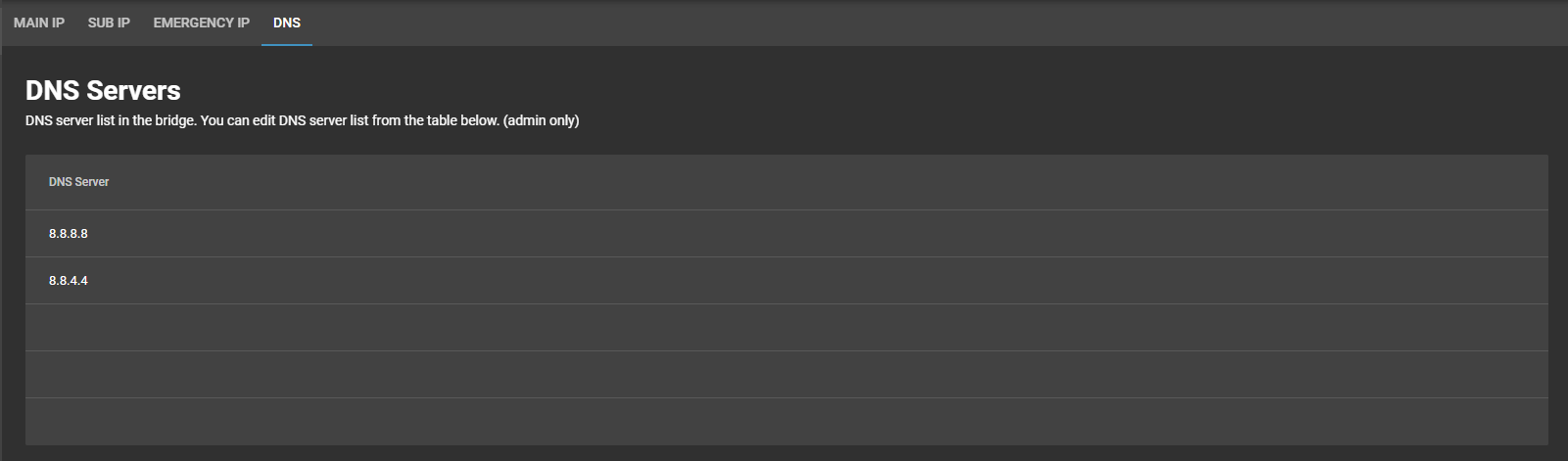

Or Edit DNS Settings, just as you can in the Network Tab in our Portal.

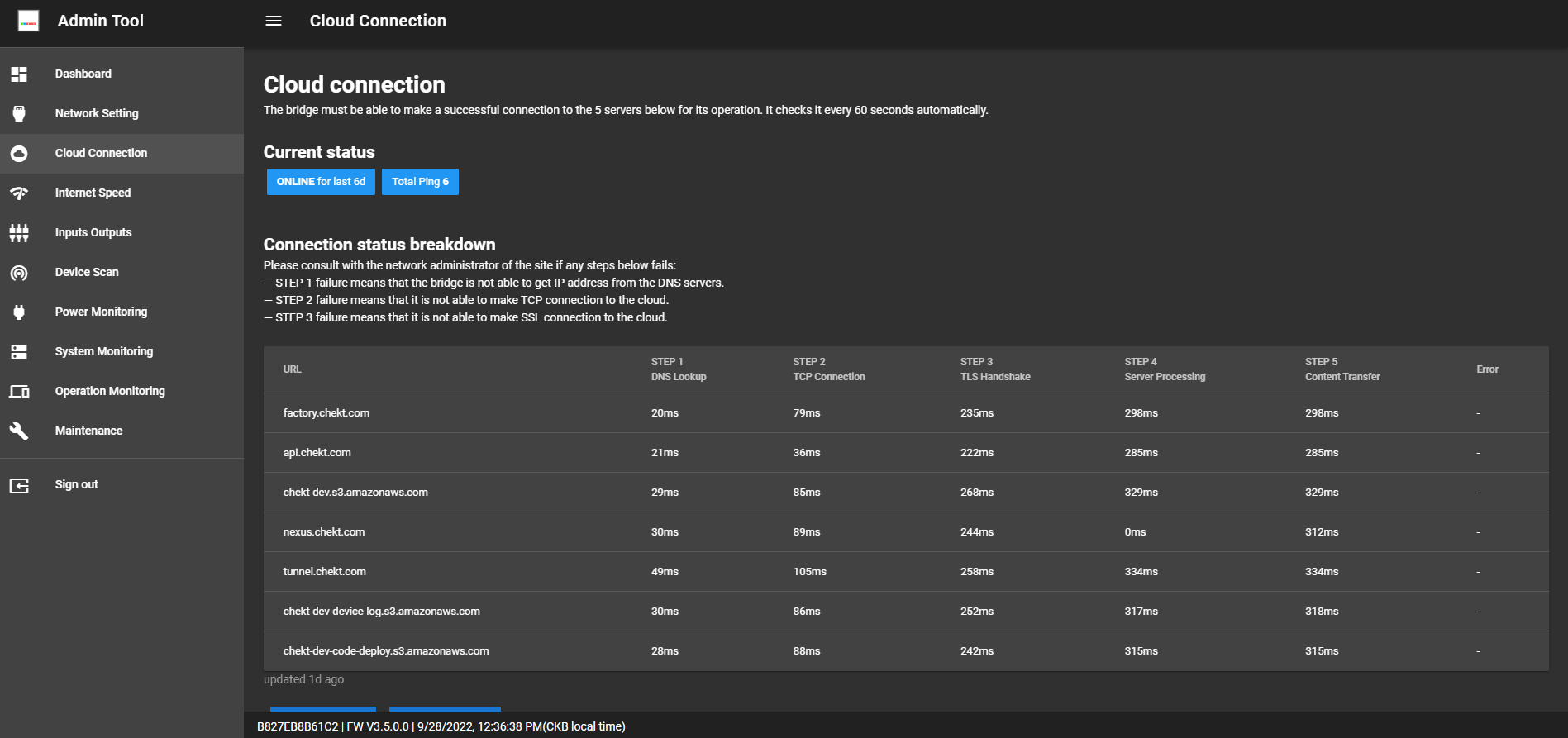

In Cloud Connections, you can view the Cloud Connection Status details. This displays the ping rate to our portal services, and can help IT determine a possible reason for lack of connectivity:



Using the Navigator on the Side, you can additionally access some of the Bridge monitoring functions that are displayed in the Dealer Portal interface, such as

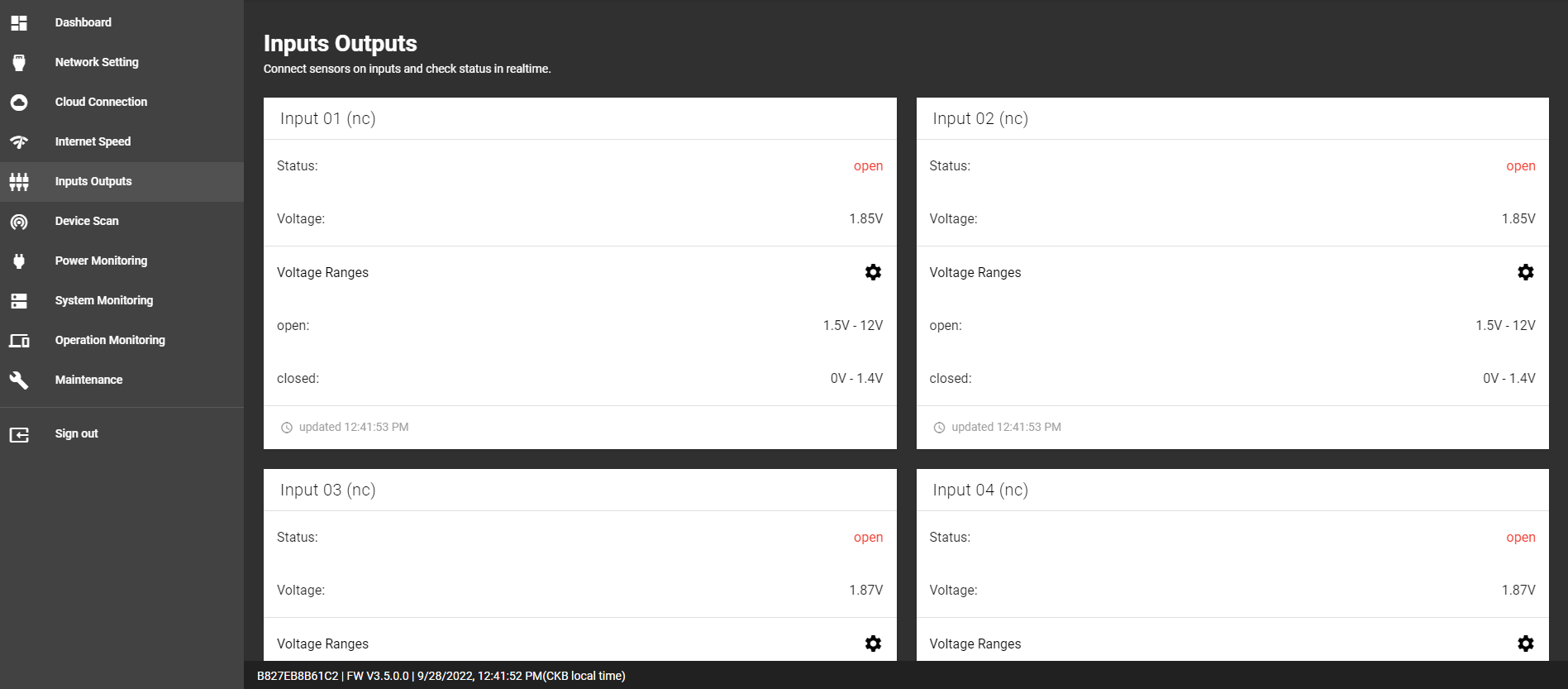

 Live Input / output Status:

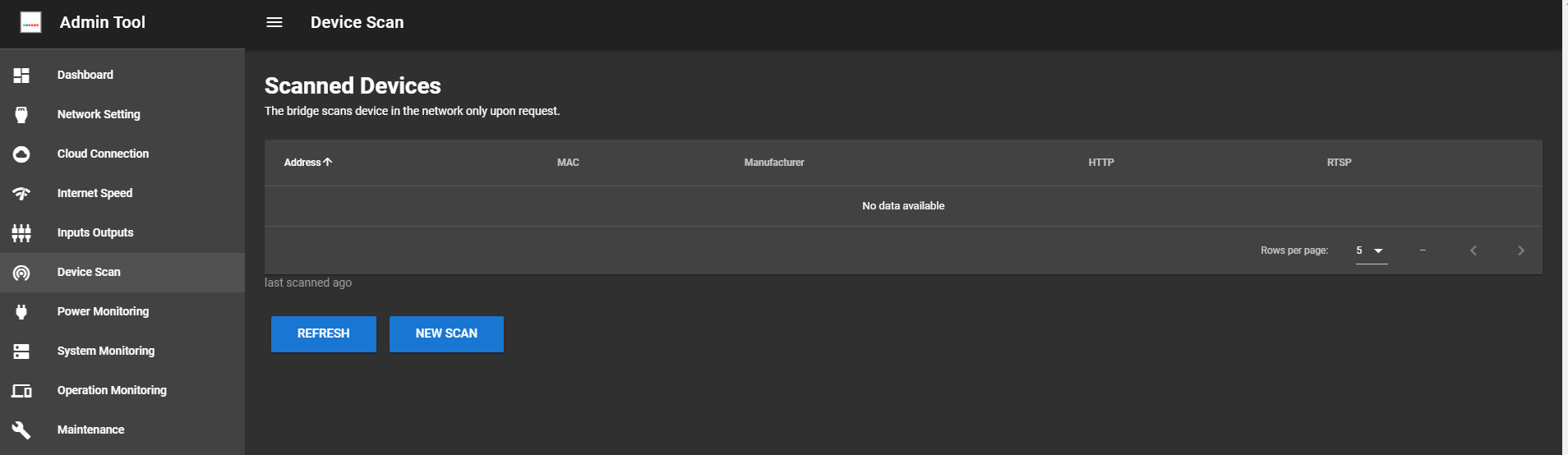

A local Device Scan:

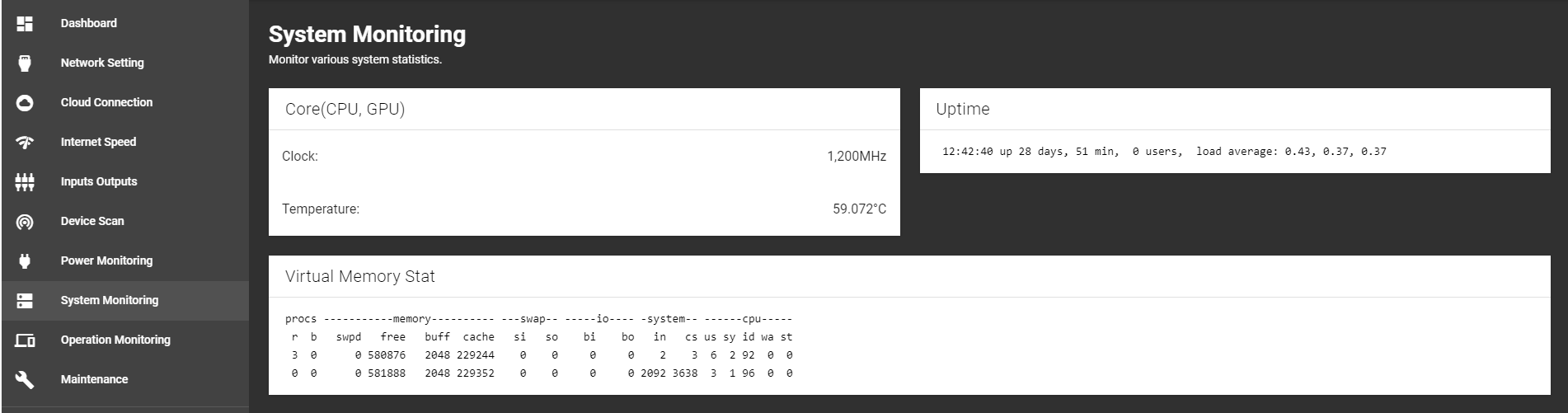

And System / Power Monitoring Functions :

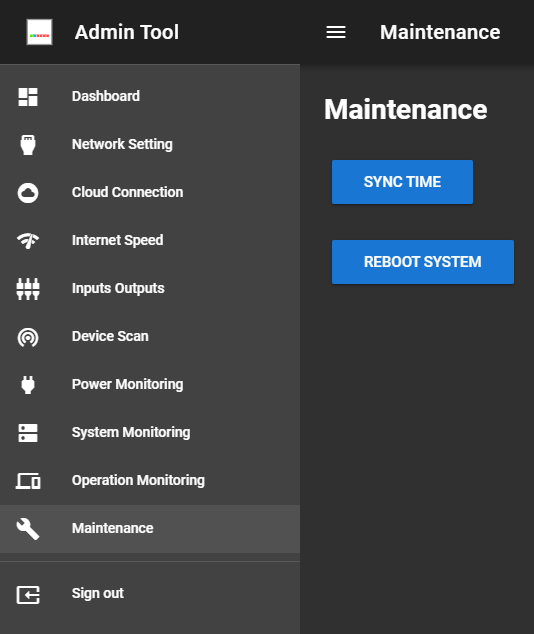

The Bridge can also be Rebooted from the Maintenance Tab



Clicking Sign out will end the session, causing the items to no longer be editable until signed back in:



The Page will Return to the White-Theme, and "Sign in as Admin" will become the bottom option again.




Thanks for Reading ~
