Configuring the CHEKT 15w & 30w IP Speaker/Horn: CKIPS15W/30W
InfoNotes
  1. The speaker is a POE device. To use the full 30w capacity of the speaker, please ensure the speaker is powered by a POE+ switch.
  2. Most current firmware release is the Attachment section at the bottom of this page. (CS20-V3.3.14)
    1. 1: IP Settings use DHCP by default, when DHCP is not available, (30 seconds timeout), then fixed IP address 192.168.50.196
    2. 2: Default username and password: admin/admin
    3. 3: Webservices Port and ONVIF Authentication Port both match:  Port 80

Notes
Importan Note: Speakers with factory firmware pre 3.3.8
  1. The CHeKT IP Speaker has a factory Static IP Address of:  192.168.50.196
  2. Default Login Credentials: usernamae: admin and password: chekt

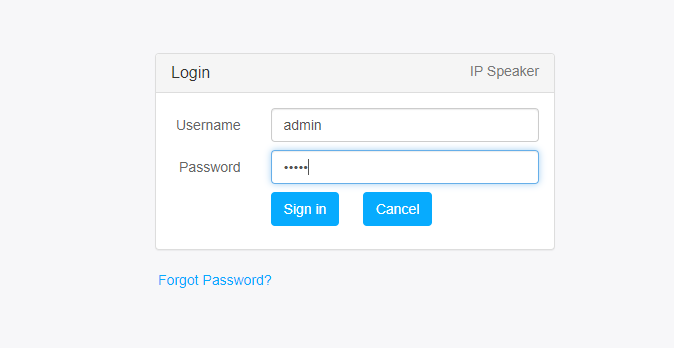

First, the connect to the speaker at the depicted static IP and enter the provided credentials:



Access the "Basic" tab in the speaker settings menu on the left side:

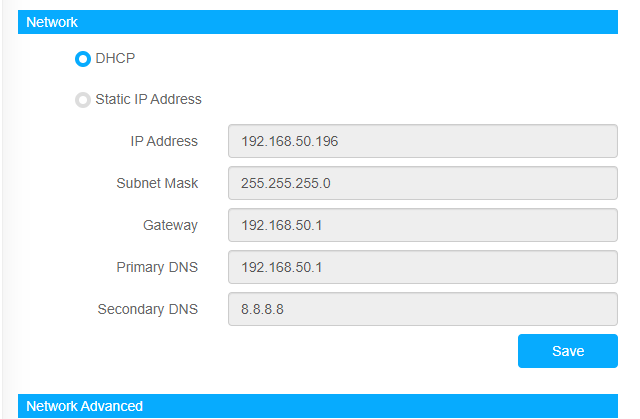

Scroll down the the network module, and set the desired DHCP or Static IP parameters and save:

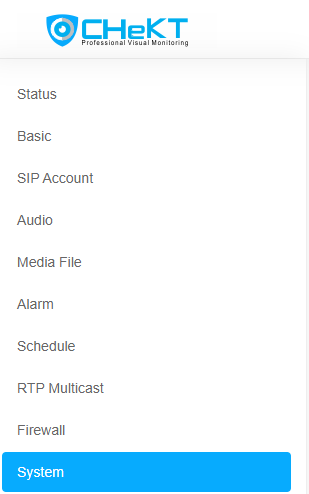

Access the System Tab:

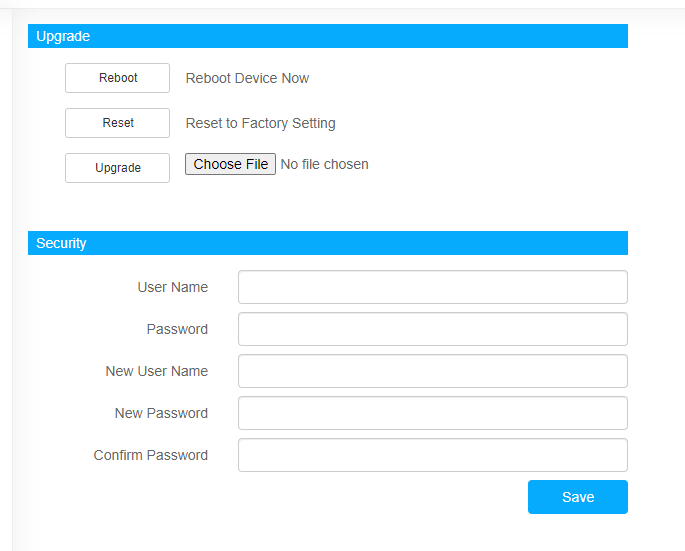

Locate the Security Module and set the desired login credentials:


Related Information:
  1. Registering an IP Speaker on a Customer Site

Firmware:

https://workdrive.zohoexternal.com/external/cdc55be75d2296c98b91d58f9cf931ba6cb5c2d26e0d5e9ff97d6bc7ff229a9a
