MicroKey Integration Setup

MicroKey Integration Setup

The integration with MicroKey has three specific requirements.
  1. Setting up your CHeKT Cloud Connetion to MicroKey. - Information Below
  2. Setting up you MicroKey Action Plan - Click Here
  3. Adding CHeKT Contact ID Codes to MicroKey - Click Here

Setting up your CHeKT Cloud Connection to the MicroKey XML Receiver

1. Configuring SPA Settings:
SPA Setup->Receivers
  1. Add a Receiver with
  2. Driver ID: 38
  3. Receiver: CHeKT
  4. Start: 0
  5. End: 13

IP Ports

  1. IP Address: 127.0.0.1
  2. Port: User Selectable
  3. Receiver ID: CHeKT
  4. Receiver Options: Company Defined
  5. Driver Options: /Server /NoChecksum

Stop and Start SPA to activate.

2. Setup your XML Receiver in the CHeKT Dealer Portal.

  • Go to the Dealer Settings

  • Under Integration, Select XML Alarm Receiver

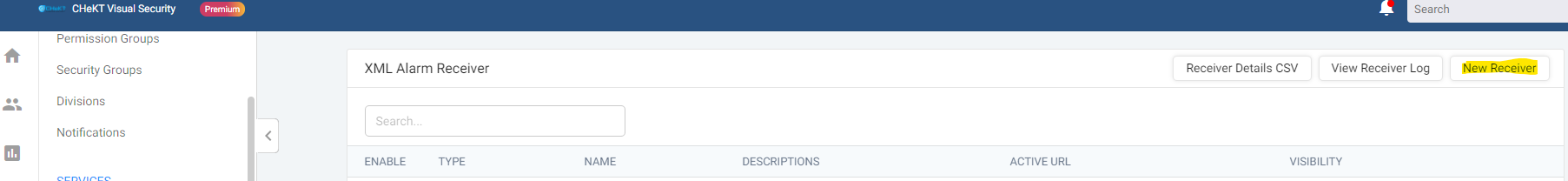

  • Press "New Receiver" in the top right.

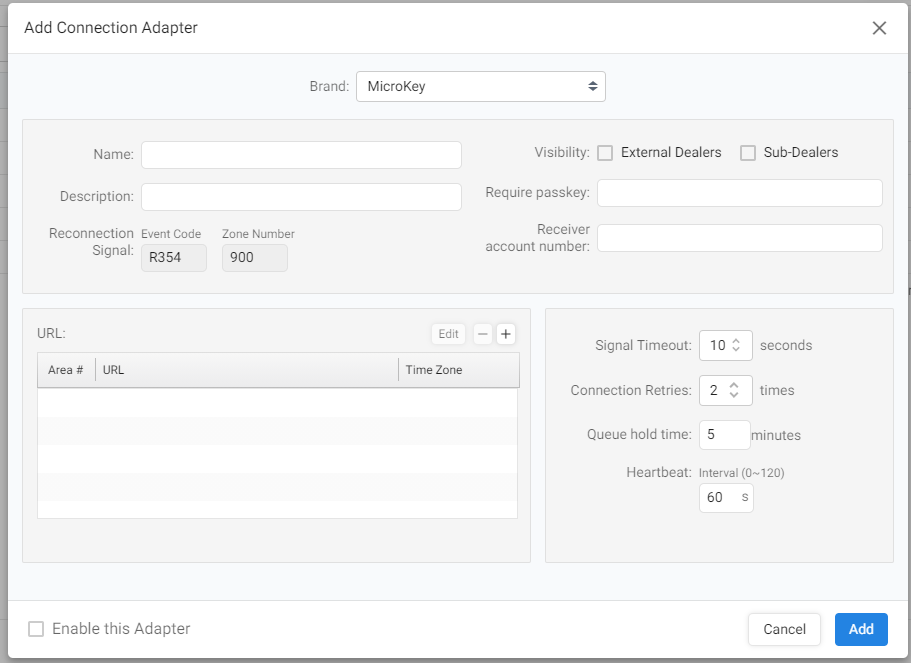

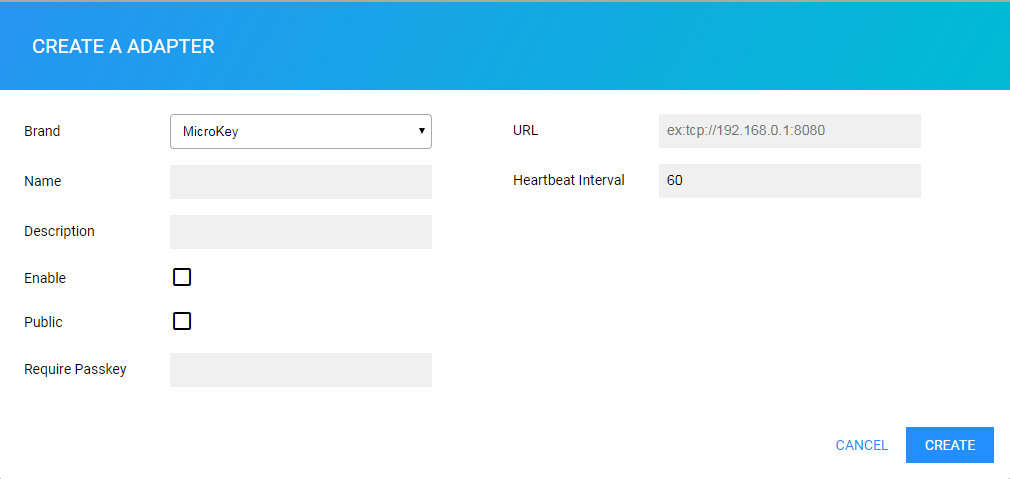

  • Select "MicroKey" as your Brand.

  • Name: Enter a name for your XML Receiver Setup.
  • Description: Enter a description for your XML Receiver Setup.
  • External Dealers: If this is selected, independent dealers can use this XML Receiver and select your account as their monitoring station.
  • Sub-Dealers: Only used for Monitoring Centers that resell CHeKT services
  • Require Passkey: This will force another dealer to know this passkey if they need to use your account as their monitoring station.
  • URL:  This is your public IP and port information into you XML receiver.
  • Heartbeat: In seconds, how often our cloud will need to send a heartbeat signal to your XML receiver.
  • Enable: This must be checked to enable the receiver.
