CHeKT Bridge Scheduled Arming

CHeKT Bridge Scheduled Arming

CHeKT has officially released portal-based Scheduled Arming for the CHeKT Bridges installed on site. Firmware version 3.5.0 or higher required.


First, access the Programming tab under Site Details




Verify your site is configured  as CHeKT Video Security System
Check out this Knowledge Base article for more details: https://support.chekt.com/portal/en/kb/articles/site-arming-source




Click the slider to Enable the Schedule ( and agree to the pop up prompt) then click the Set Up button in the middle, under the clock.

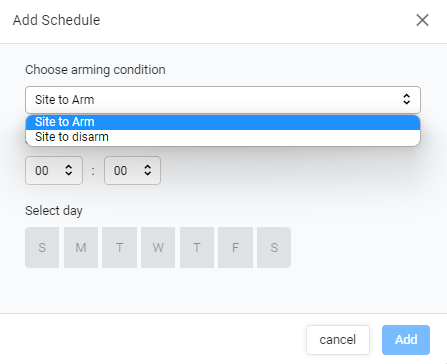

Choose Site to Arm


Then Select the Times and Days-of-the-week you would like the Arming to occur.

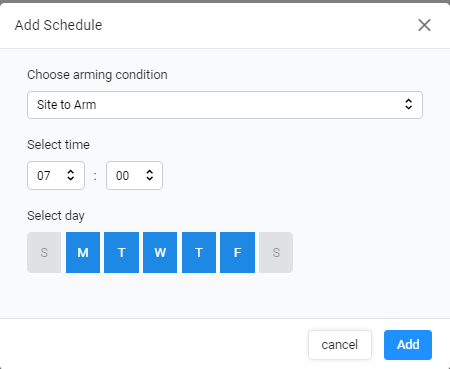

(Schedule below depicts Arming at 07:00 AM on Weekdays)


Click Add and you will see a visual representation of your arm times appear :


Now click the add a schedule button at the top right of the pane so we can add the disarm times.

Schedule depicts disarming on at 8:00 PM, Weekdays



When clicking add, disarm times should now also be visible as well.


All Bridges on this site should now Arm at 07:00 AM, and Disarm at 8:00 PM Monday through Friday.
