The CHeKT Solution has a few model options depending on site installation needs.

Model
Camera Channels
Arming
Alarm Source
Network Adapters
Power
Status
4
Cloud Arming Only
API Arming
Wired Input Zone
Analytic Metadata
API Trigger
1
12v DC
EOL
4
Arming Voltage Input
Cloud Arming
API Arming
Wired Input Zone
Analytic Metadata
API Trigger
1
12v DC
EOL
4
Arming Voltage Input
Cloud Arming
API Arming
Wired Input Zone
Analytic Metadata
API Trigger
1
12v DC
EOL
CKB308
8
Arming Voltage Input
Cloud Arming
API Arming
Wired Input Zone
Analytic Metadata
API Trigger
1
12v DC / POE
Available for Sale
12
Arming Voltage Input
Cloud Arming
API Arming
Wired Input Zone
Analytic Metadata
API Trigger
1
12v DC
EOL
CKB312v2
12
Arming Voltage Input
Cloud Arming
API Arming
Wired Input Zone
Analytic Metadata
API Trigger
1
12v DC / POE
Available for Sale
CKB416v0
16
Cloud Arming Only
API Arming
Onvif Metadata
API Trigger
2
5v DC / POE
EOL
CKB416v1
16
Arming Voltage Input
Cloud Arming
API Arming
Analytic Metadata
API Trigger
2
5vDC /12vDC / POE
Available for Sale

Info Notes

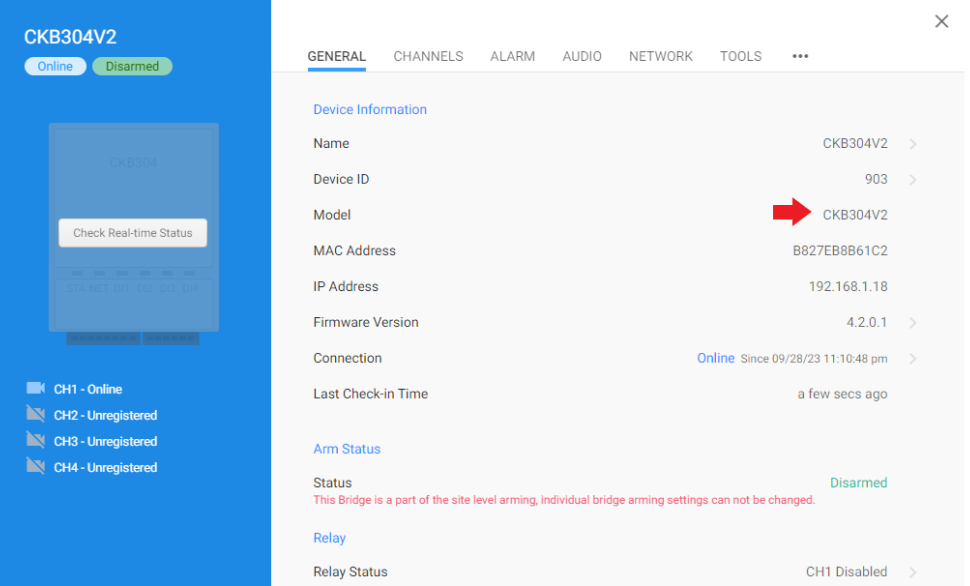

The Bridge Model is Displayed in the Dealer Portal on the General Tab for that unit:





CKB304v2: 4 Zones/4 Channels

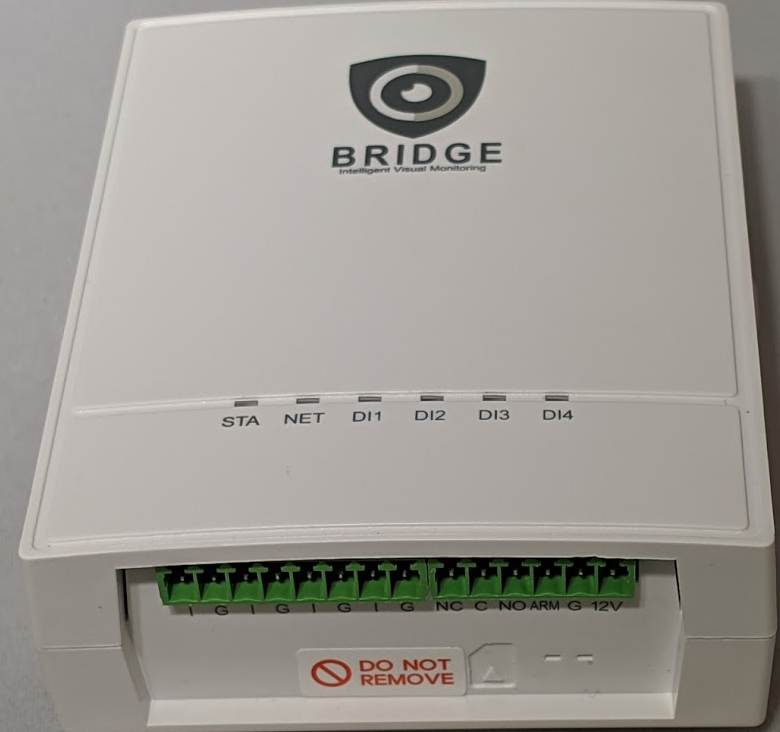

The CKB304v2
  1. Recognizable at-a-glance by the 4 Digital Input LED'S and the power terminal connection location on the far-right terminals of the front-mounted connection block
  2. Supports 4 Camera Channels and 4 Hard - Wired Device Alarm Inputs
  3. Supports Audio Out Using the 3.5 millimeter audio out, as well as IP Speaker Connection
  4. Supports Voltage Arming from the Digital Arming Input Terminal
  5. Includes 1 programmable NO/NC relay
  6. Supports Variable Voltage Selection for the arming and alarm input terminals

CKB312v1



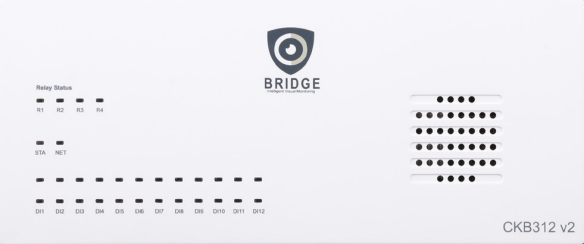

The CKB312v1 12 Channel Unit
  1. Recognizable at-a-glance by the 12 Digital Input LED'S, 12 Blue Camera mount Status lights and the 4 Red Relay Status lights
  2. Includes 12 digital inputs, supports 12 camera streams and Voltage Arming to follow the arming state of the existing alarm panel.
  3. Supports Audio Out (Talkdown) Using the 3.5 millimeter audio out, as well as IP Speaker Connection
  4. Supports Custom Arming Voltage Configuration
  5. Includes 4 programmable NO/NC relays
  6. Supports Variable Voltage Selection for the arming and alarm input terminals

CKB308

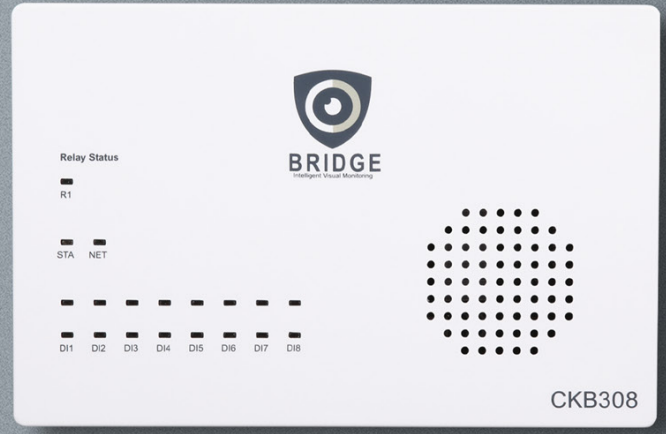

The CKB308 8 Channel POE Unit:
  1. Recognizable at-a-glance by the 8 Digital Input LED'S, 8 Blue Camera mount Status lights and the Single Relay Status light
  2. Support Power Over Ethernet
  3. Includes 8 digital inputs, supports 8 camera streams and Voltage Arming to follow the arming state of the existing alarm panel.
  4. Supports Audio Out (Talkdown) Using the 3.5 millimeter audio out, as well as IP Speaker Connection.
  5. Supports Custom Arming Voltage Configuration
  6. Includes 1 programmable NO/NC relay
  7. Supports Variable Voltage Selection for the arming and alarm input terminals

CKB312V2






The CKB312v2 12 Channel POE Unit:
  1. Just like the previous V12, this model is recognizable the 12 Digital Input LED'S, 12 Blue Camera mount Status lights and the 4 Red Relay Status lights on the front face

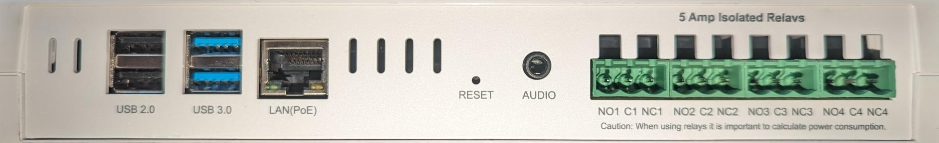

  2. Can be distinguished from the previous CKB312 Model with the LAN Port Labeled POE and the exposed USB connections next to the LAN Connection
  3. Includes 12 digital inputs, supports 12 camera streams and Voltage Arming to follow the arming state of the existing alarm panel.
  4. Supports Audio Out (Talkdown) Using the 3.5 millimeter audio out, as well as IP Speaker Connection
  5. Supports Custom Arming Voltage Configuration
  6. Includes 4 programmable NO/NC relays
  7. Supports Variable Voltage Selection for the arming and alarm input terminals

Legacy Models:

  1. CKB304V0

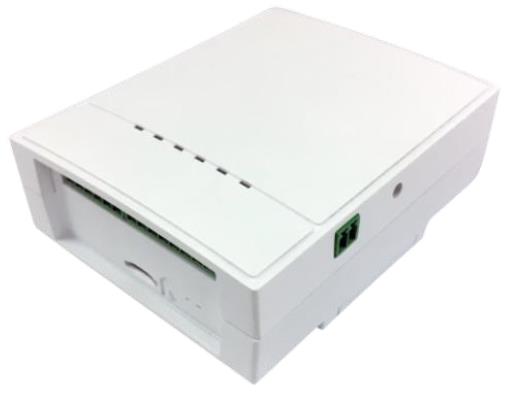

The CKB304V0 is our first generation CHeKT Bridge.
  1. Recognized   by the 2-pin DC power inputs on the right-hand side of the unit (depicted above).
  2. Can be updated to the latest firmware build
  3. 4 digital inputs tied to 4 mounted camera streams
  1. CKB304V1: 4 Channel Model




CKB304V1
  1. Recognized by the 4 pin power input on the right hand side (contrasting the 2 pins in the earlier version, and the bottom input for the v2) that includes both 12VDC In and 2 additional polarized pins for arming control.
  2. Includes 4 digital inputs, supports 4 cameras and Voltage Arming to follow the arming state of the existing alarm panel.
  3. Supports Audio Out (Talkdown) Using the 3.5 millimeter audio out, as well as IP Speaker Connection
  4. Supports both positive and negative voltage arming conditions to trigger arming follow.
    Notes
    Review this  wiring  article as it differs from the new and current wiring method for the new models.
