Once you have created a customer account site you can proceed to register a VCP in the account Site. Accounts can have more then one VCP registered.
- Select "Site Devices" from the customer menu
- Select "Devices" from submenu.
- Click on either the "Add and Select Add VCP" at the top corner of the device list or "Create a Device" option on the list; both will bring you you the next window.
Step 1: Information
- VCP Name: The name should be used as a reference name for the VCP device on the site.
- Mac Address & Entry Key: Manually enter the Mac Address & Entry Key found on the QR code sticker labeled on the front face of your VCP.

Step 2: Firmware CheckThis step will automatically check your VCP firmware version, while we strongly recommend that you updgrade your VCP to the latest firmware, you do have the option to either choose a different version (if available) by clicking show details or skipping this step. However having your VCP on the latest Firmware will improve the performance, camera compatability, and dramatically reduce drawbacks, etc.To review current and previous Firmware Version Release Notes Click Here.To upgrade your VCP's firmware, simply click on the FW Update button and your VCP will begin downloading the new firmware and reboot.The process should take about 5 minutes and we strongly advise to not disturb the VCP's power and network connections during this process.Step 3. Arming MethodCHeKT Video Security SystemYour VCP can also be set as a Stand-Alone Video Security System.CHeKT's stand-alone Video Security System setup allows integrators to use the VCP as an independent video security system. All VCP on the site are armed and disarmed from the end-user app or the CHeKT dealer portal. With this method, the VCP's do not need a traditional alarm panel on-site for arming, and should be programmed to communicate alarm and video events to an alarm monitoring center. Information on how to configure your VCP as a stand alone click here.Alarm Panel Pairing:In this step, you can configure your VCP's arming options and preset the arming voltage ranges based on the alarm panel you will be wiring your bridge to. If you are unsure, or have not wired your panel's programmable output to the VCP's arming pin yet, this step can be skipped to be configured in the VCP settings at later time.VCPs are armed and disarmed individually based on the voltage settings and the wiring with the on-site alarm panel. This pairing method allows VCPs to follow the armed and disarmed state of an alarm panel using the programmable output or PGMs of the alarm panel. Settings and voltage values for each VCP are programmed on the VCP settings. Information on how to program and wire various alarm panels with the VCP is Here.
Step 4. Alarm Zone ProgramingIn this step, you can congfirure the VCP's Alarm Input Voltage Range based on the type of alarm panel zone terminals you will be wiring your VCP to.All alarm panel brands have a specific voltage range for Normal and Alarm conditions on the panel zones. When wiring alarm panel zones into the VCP zone inputs, it’s essential to ensure the VCP is programming to use the correct normal and alarm range for the specific panel. In this step there are presets defined for several panels in the dropdown menu. If your panel is not listed, a technician will need to use a voltage meter to confirm the normal and alarm range for the panel in use. The VCP and the alarm panel must share a common 12v ground to ensure proper voltage readings. For wiring guidance, click here.You can also configure the VCP's timer settings in this step. These timers must match those of the alarm panel if the VCP is going to be paired up with one, or adjust them as how you wish the VCP to behave in a Stand-Alone Video Security System setup.Entry Delay: When an alarm zone is triggered, the “Entry/Exit” zone triggered will capture the video of the initial trigger and hold the event. If system is disarmed within the timer time, the event is discarded. If the system is not disarmed within the delay timer, the event is stored as an alarm.Exit Delay: When a system is armed, any triggers on “Entry/Exit” zones will be ignored for the amount of the exit timer.Bell Duration: When as system goes into an alarm condition, all Entry/Exit and Follower zones behave like instant zones during this duration. Once the duration is complete the zone reset to follow normal conditions.Step 5. Site Service

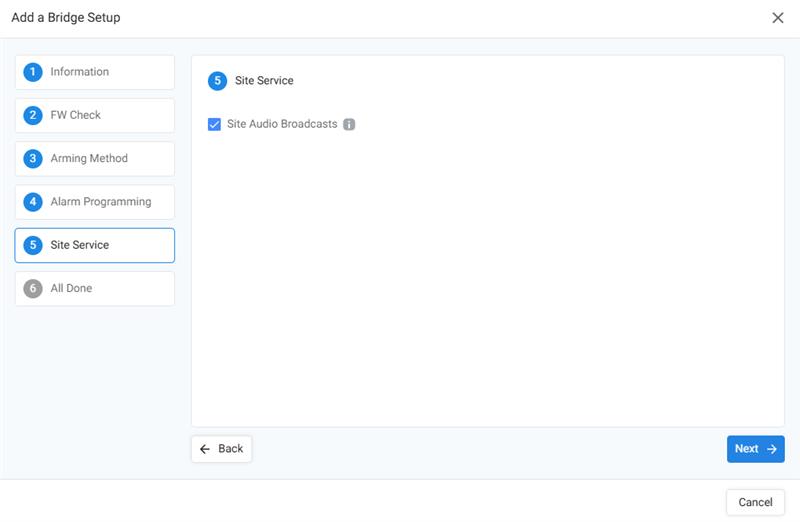

If this step is greyed out and disabled for configuration, you most likely are a sub-dealer and you will need to contact your monitoring station to adjust and enable additional services; you may skip this step.Step 6. All DoneAt this step, you have successfully registered and configure your first VCP at your customer site account. From here you can proceed to begin registering and mounting cameras, register a new VCP which will sync all the settings of the first VCP that was previously registered, or click done.
